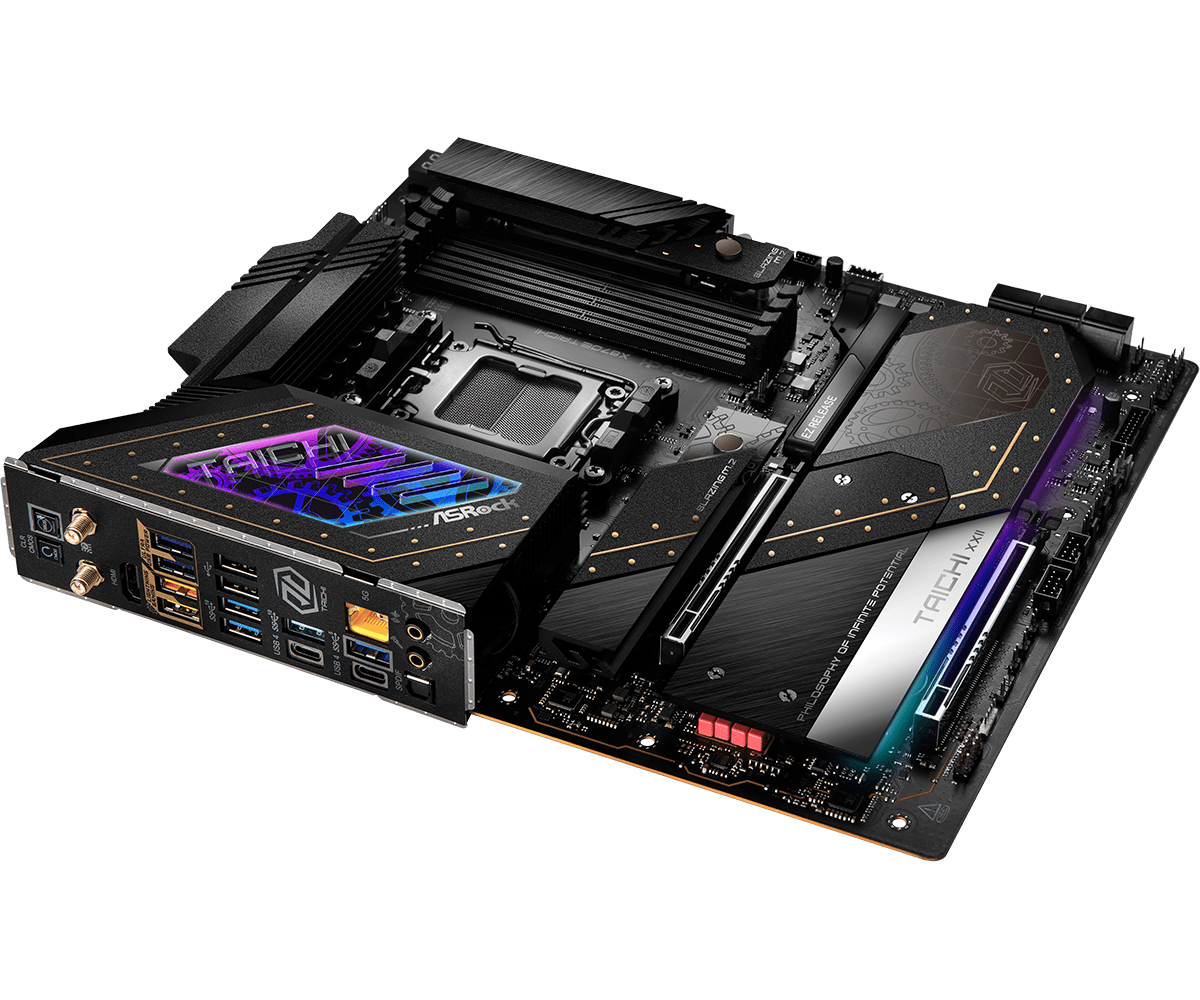

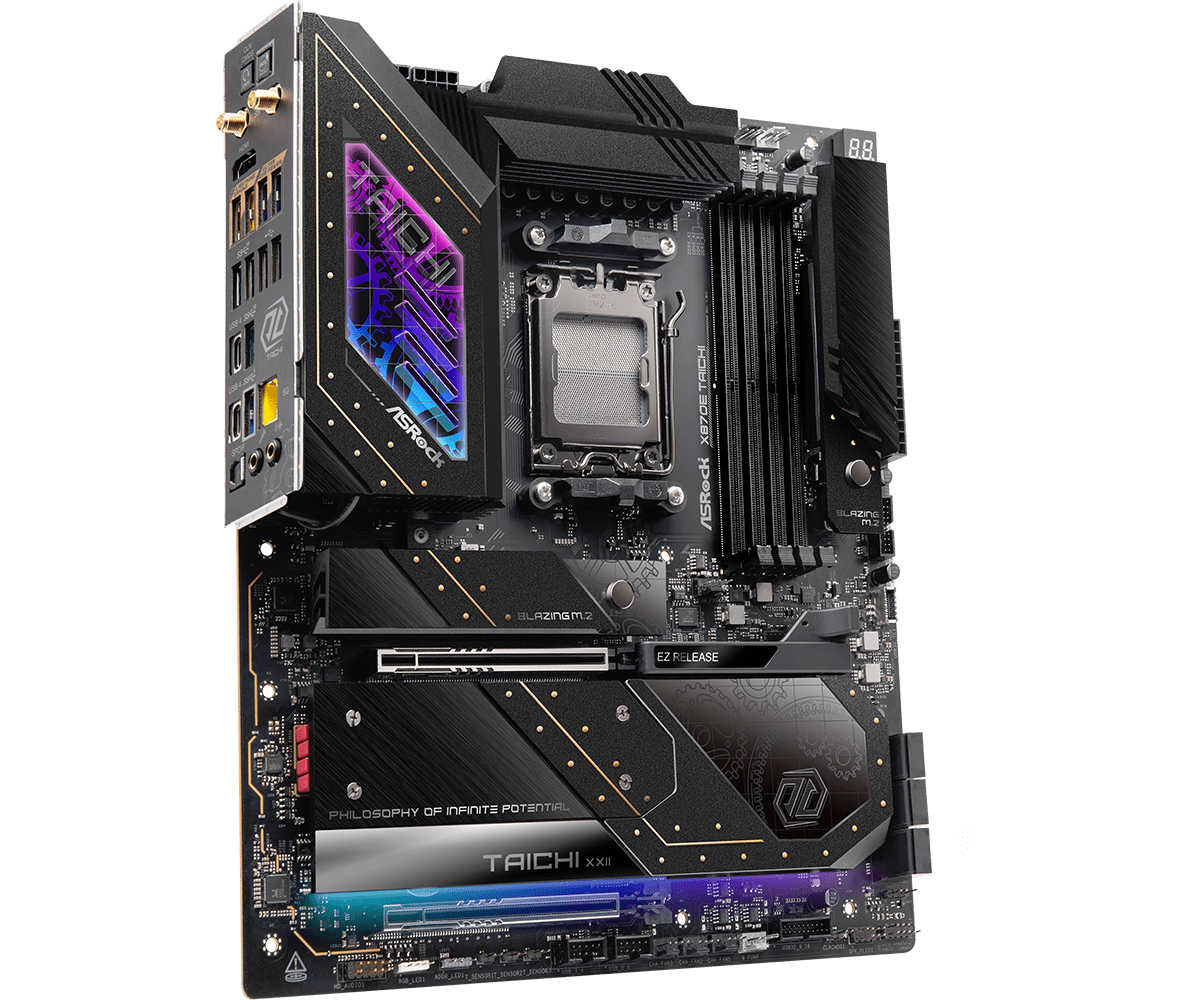

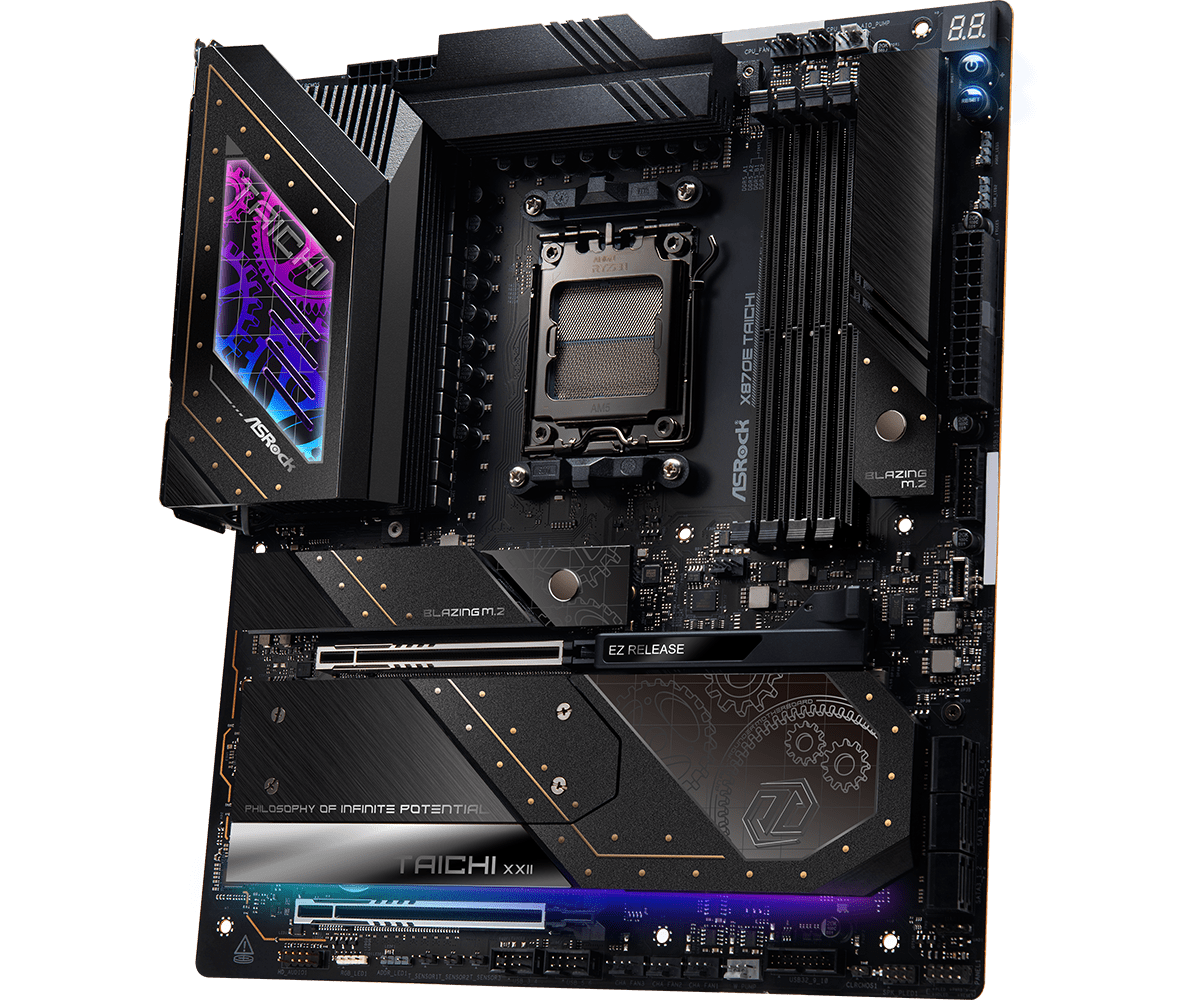

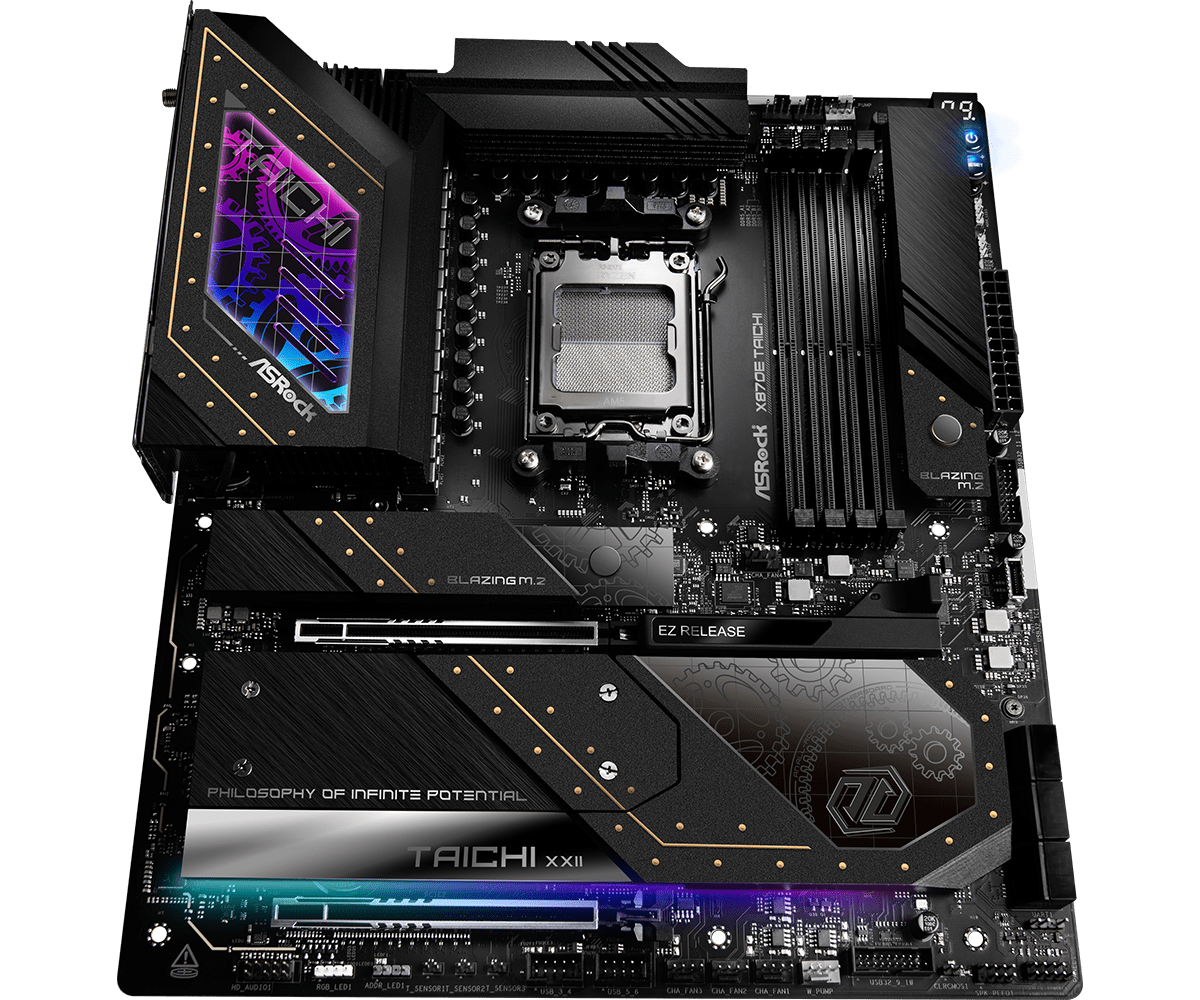

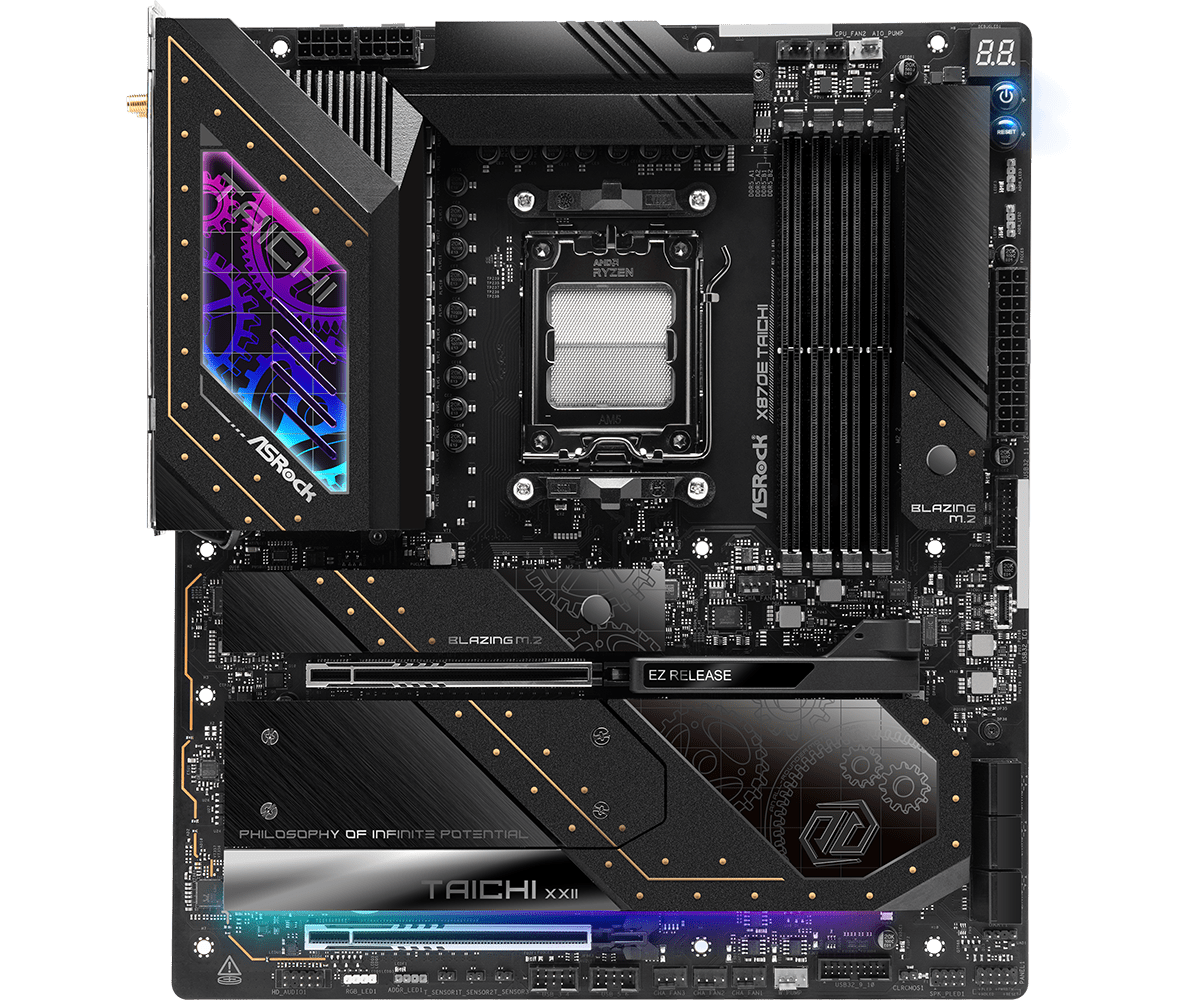

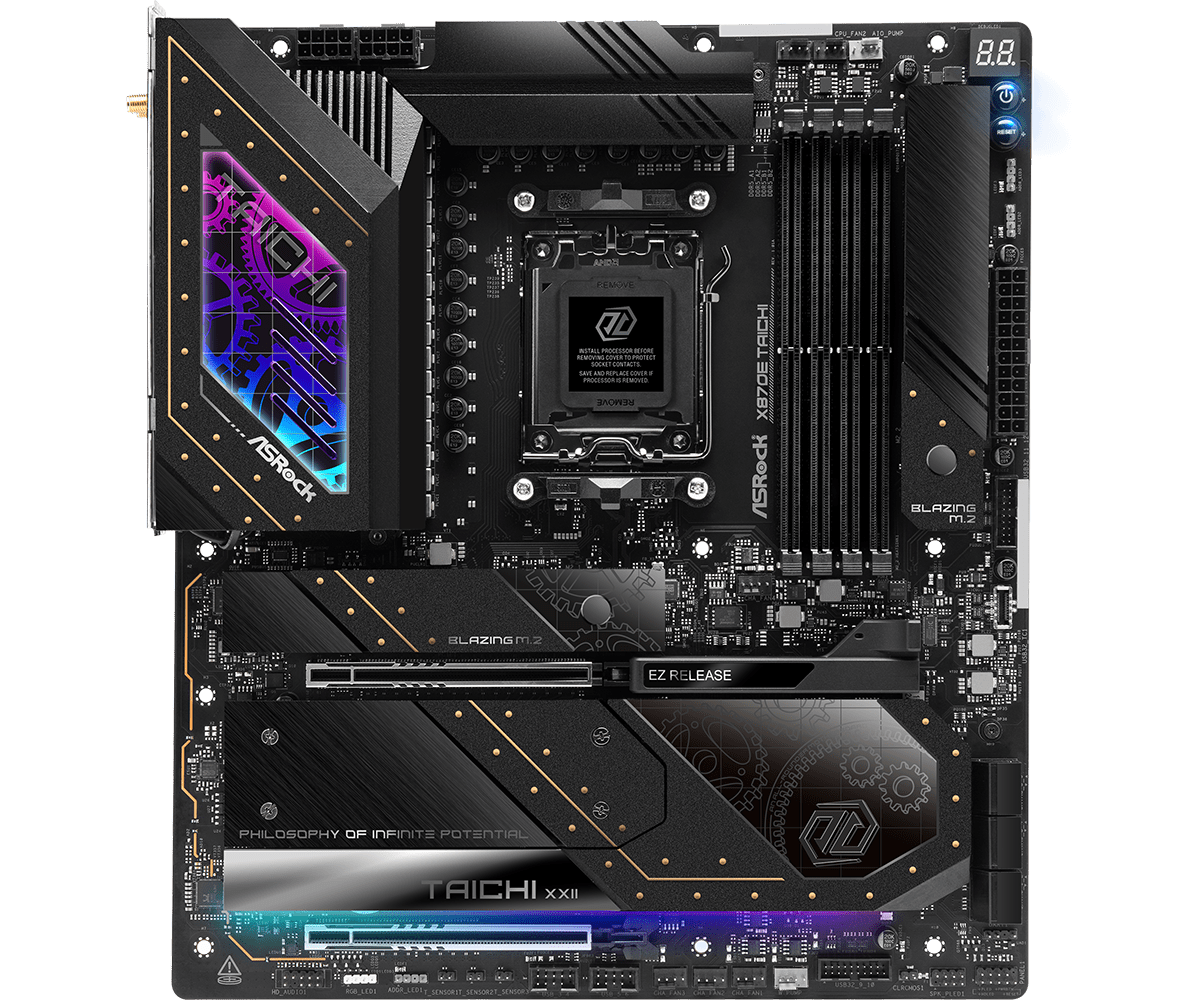

ASRock X870E Taichi Motherboard
The ASRock X870E Taichi is a flagship motherboard designed for high-end gamers and PC enthusiasts. It combines top-tier hardware specifications, robust power design, and DIY-friendly features, making it an ideal choice for those looking to build a powerful and stylish gaming PC. With support for the latest AMD processors, advanced cooling solutions, and cutting-edge connectivity options, the X870E Taichi ensures exceptional performance and reliability.
Key Features:
- Supports AMD Ryzen 7000 Series Processors: Optimized for the latest AMD CPUs, providing unparalleled performance.
- 24+2+1 Power Phase Design: Ensures stable power delivery and excellent overclocking capabilities.
- DDR5 Memory Support: Supports high-speed DDR5 memory for improved performance.
- PCIe 5.0 and M.2 Slots: Offers the latest PCIe 5.0 standard for graphics cards and M.2 SSDs, ensuring ultra-fast data transfer speeds.
- Wi-Fi 7 and 5G Ethernet: Provides the latest in wireless and wired networking technology for high-speed internet connectivity.
- USB4 Type-C: Features the latest USB4 technology for fast and versatile connectivity.
- Advanced Cooling Solutions: Includes multiple heatsinks and fan headers for efficient thermal management.
The ASRock X870E Taichi motherboard is built with a 24+2+1 power phase design, ensuring smooth and stable power delivery to the CPU, which is crucial for overclocking and maintaining system stability under heavy loads. The motherboard supports DDR5 memory, allowing for higher memory speeds and better overall system performance.
With PCIe 5.0 support, the X870E Taichi is ready for the latest graphics cards and M.2 SSDs, offering twice the bandwidth of the previous generation. This means faster data transfer rates and improved gaming and productivity performance. The inclusion of Wi-Fi 7 and 5G Ethernet ensures that you have the fastest and most reliable network connections available, whether you’re gaming online or streaming high-definition content.
The motherboard also features USB4 Type-C ports, providing up to 40Gbps data transfer speeds, making it easier to connect and transfer data from external devices. The advanced cooling solutions, including multiple heatsinks and fan headers, help keep your system cool and stable, even during intense gaming sessions.
Conclusion:
With its robust feature set, premium build quality, and stylish design, the ASRock X870E Taichi motherboard is an excellent choice for gamers and PC enthusiasts looking to build a high-performance system. Its advanced connectivity options, powerful performance, and efficient cooling solutions make it a standout option in the market.
Specifications
Unique Feature | Superb Productivity - PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- USB4 Type-C Ports (40 Gb/s)
Rock-Solid Durability - Server-Grade Low-Loss PCB
- 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity - 5G LAN, 802.11be Wi-Fi 7 Module
- ASRock Lightning Gaming Ports
EZ Update - BIOS Flashback Button
- ASRock Auto Driver Installer
|
CPU | - Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
- Supports ASRock Hyper BCLK Engine
|
Chipset | |
Memory | - Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)
- Max. capacity of system memory: 256GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
|
BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support
|
Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
|
Audio | - 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
- WIMA Audio Capacitors (For Rear Outputs)
- ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
- Individual PCB Layers for R/L Audio Channel
- Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
- Nahimic Audio
|
LAN | - 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
- Realtek RTL8126
|
Wireless LAN | - 802.11be 2x2 Wi-Fi 7 Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
- Supports 2.4GHz/5GHz/6GHz frequency band
- Supports 160MHz channel bandwidth with 6GHz frequency band
- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.4
- Supports MU-MIMO
|
Slots | CPU: - 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes
Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Supports AMD CrossFire
|
Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 6 x SATA3 6.0 Gb/s Connectors
|
RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
|
USB | CPU: - 2 x USB4 Type-C (Rear)
- 2 x USB 3.2 Gen2 Type-A (Rear) Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 3 x USB 3.2 Gen2 Type-A (Rear)
- 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
|
Connector | - 3 x Thermistor Cable Headers
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header
- 3 x Addressable LED Headers
- 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
- 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED
|

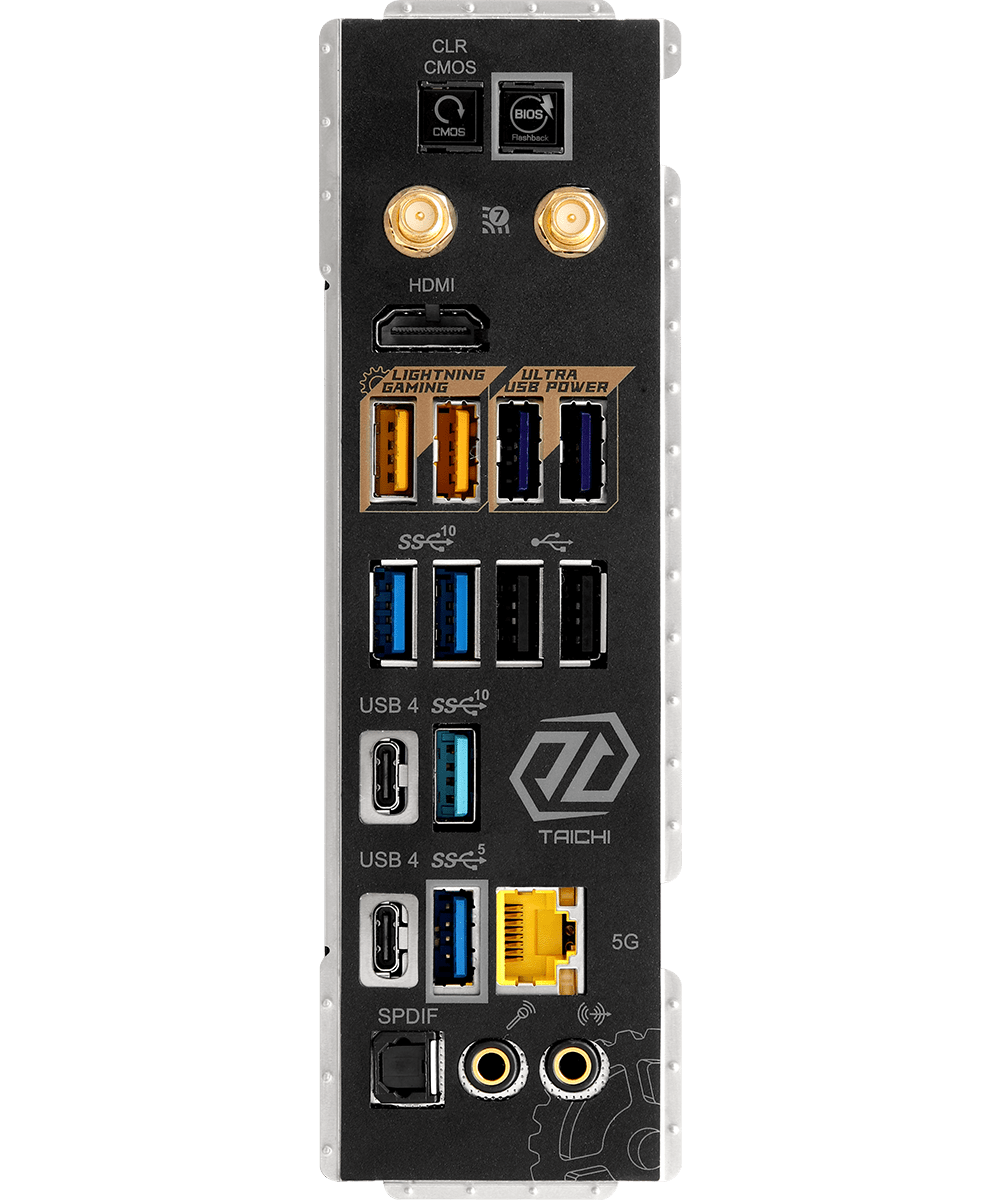

Rear Panel I/O | - 2 x Antenna Ports
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x USB4 Type-C Ports (40 Gb/s)
- 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)
- 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x Clear CMOS Button
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
|
Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
UEFI - ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
|
Accessories | - 4 x SATA Data Cables
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 1 x ARGB Splitter Cable
- 3 x Thermistor Cables
|
Form Factor | - EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
- 8 Layer PCB
- 2oz Copper PCB
|
OS | - Microsoft Windows 10 64-bit / 11 64-bit
|
Certifications | - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
|
