Description

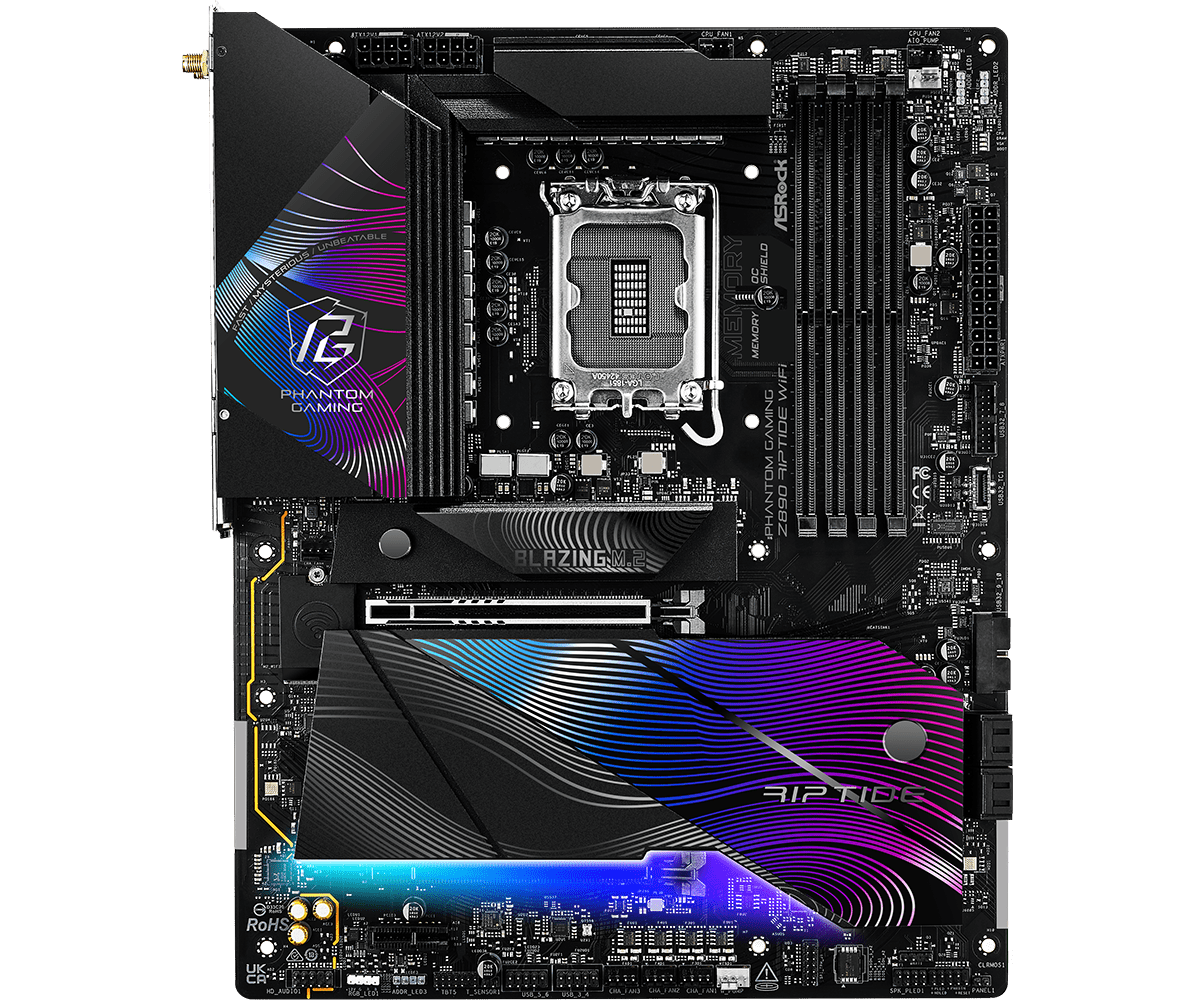

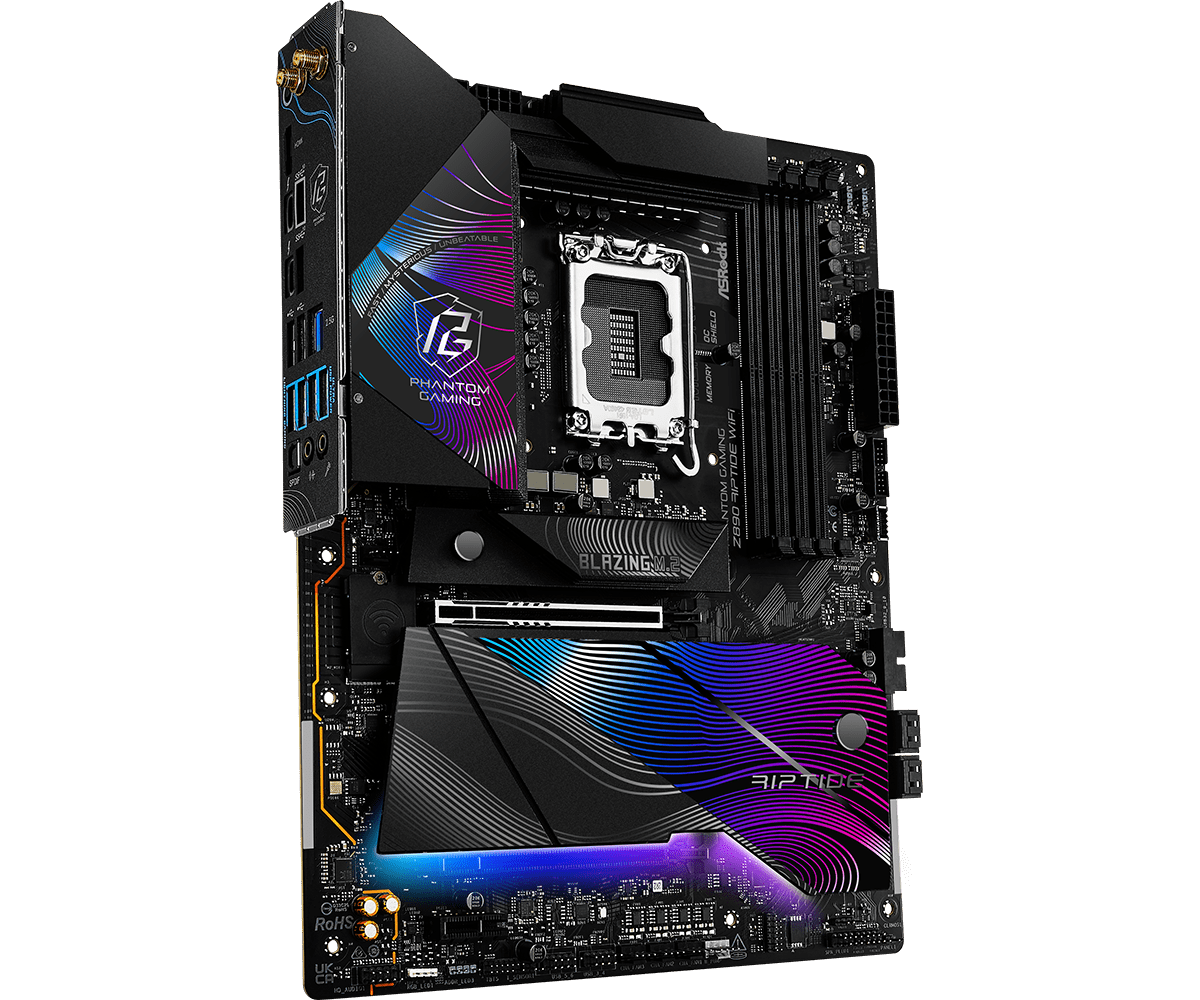

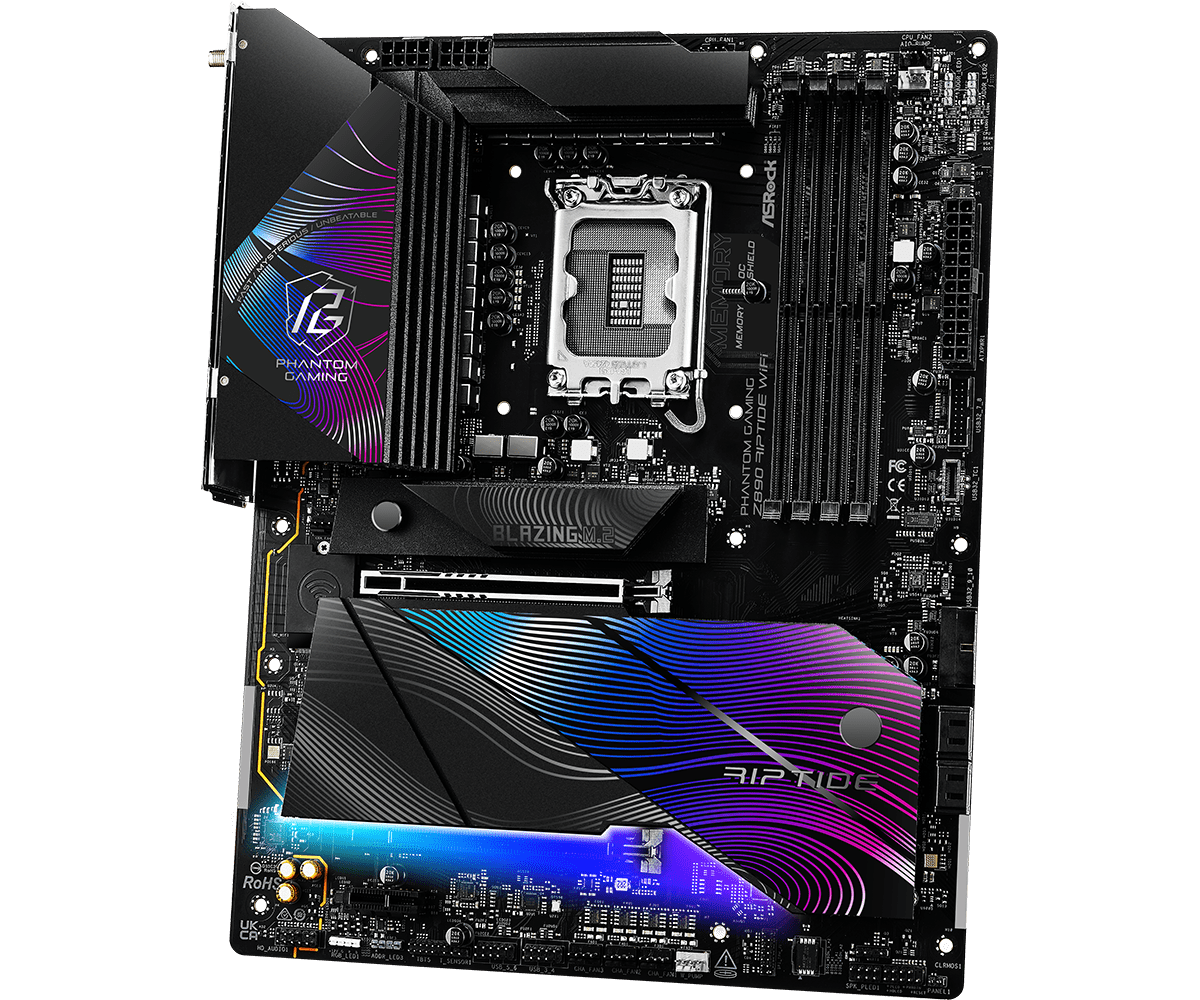

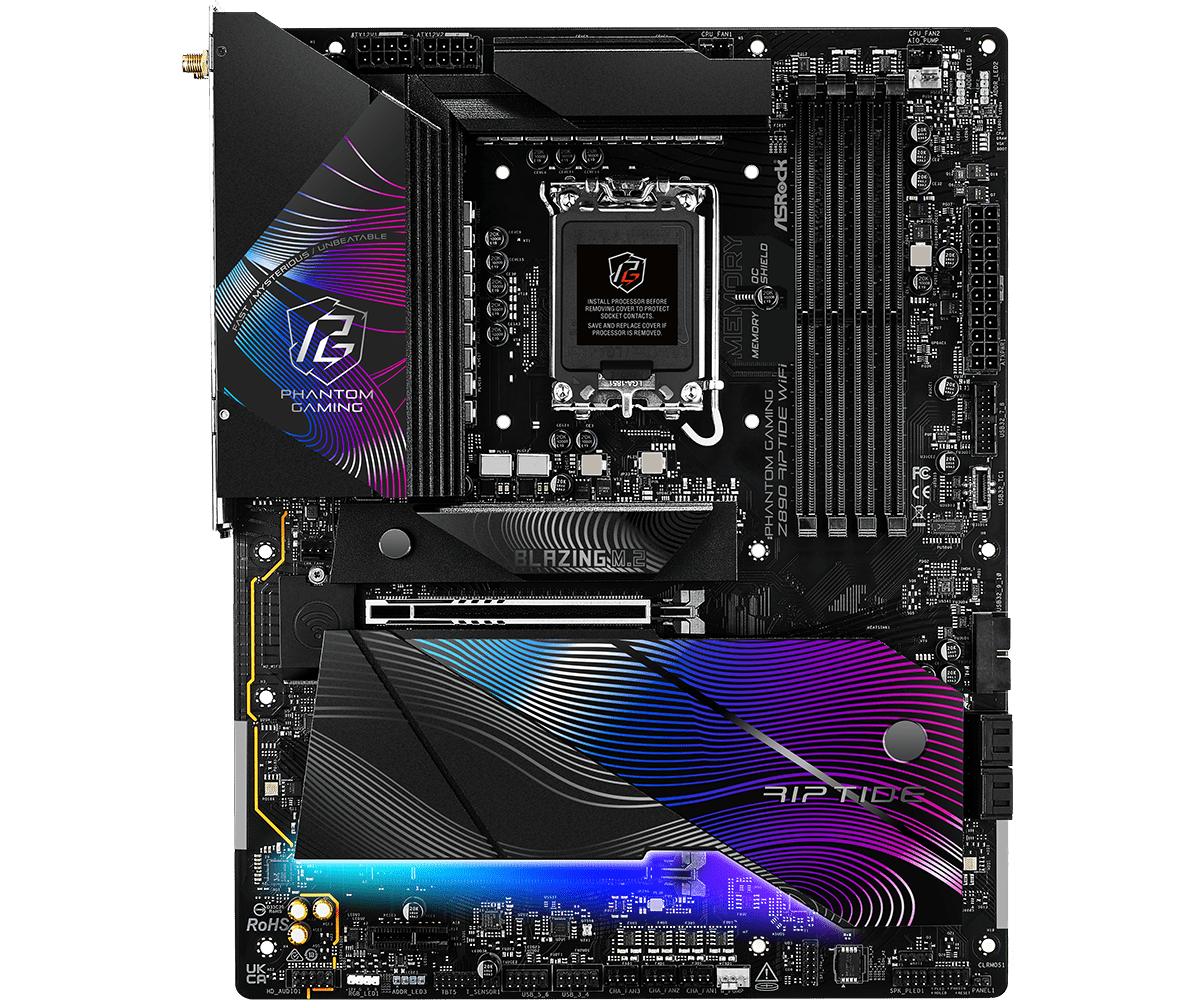

Unleash your PC’s full potential with the ASRock Z890 Riptide WiFi motherboard! Designed for gamers and power users, this ATX board features the Intel Z890 chipset, LGA 1851 socket, DDR5 support up to 9466 MHz, and Wi-Fi 7 for next-level speed. With PCIe 5.0, Killer 2.5G LAN, and 7.1 HD audio, this board delivers elite performance for your dream build.

Key Features

• Intel Z890 chipset – Optimized for the latest Intel Core Ultra (Series 2) processors
• LGA 1851 socket – Future-ready support for next-gen CPUs
• DDR5 memory – 4 DIMM slots, up to 256GB, speeds up to 9466 MHz
• PCIe 5.0 x16 slot – Blazing-fast GPU and expansion card support
• Wi-Fi 7 & Killer 2.5G LAN – Unmatched networking performance
• 7.1 HD Audio with Realtek ALC1220 – Immersive, crystal-clear sound
• M.2 & SATA III storage – Multiple slots with RAID 0/1/5/10 support
• USB 3.2 Gen 2x2 & Thunderbolt ports – High-speed connectivity for peripherals

Specifications

General

• Chipset: Intel Z890
• Form Factor: ATX
• Socket: LGA 1851 (Socket V1)
• Processor Compatibility: Intel Core Ultra (Series 2)

Memory

• Type: DDR5-SDRAM
• Slots: 4 DIMM
• Max Capacity: 256GB
• Max Speed: 9466 MHz
• ECC Support: Non-ECC

Expansion Slots

• PCIe x16 (Gen 5.0): 1
• PCIe x16 (Gen 4.0): 1
• PCIe x1 (Gen 4.0): 1

Storage & RAID

• Supported Interfaces: M.2, SATA III
• RAID Levels: 0, 1, 5, 10

Networking & Connectivity

• Wi-Fi: Wi-Fi 7 (802.11be)
• Ethernet: Killer E3100G, 2.5G LAN
• Bluetooth: 5.4

Audio

• Channels: 7.1 HD Audio
• Chipset: Realtek ALC1220

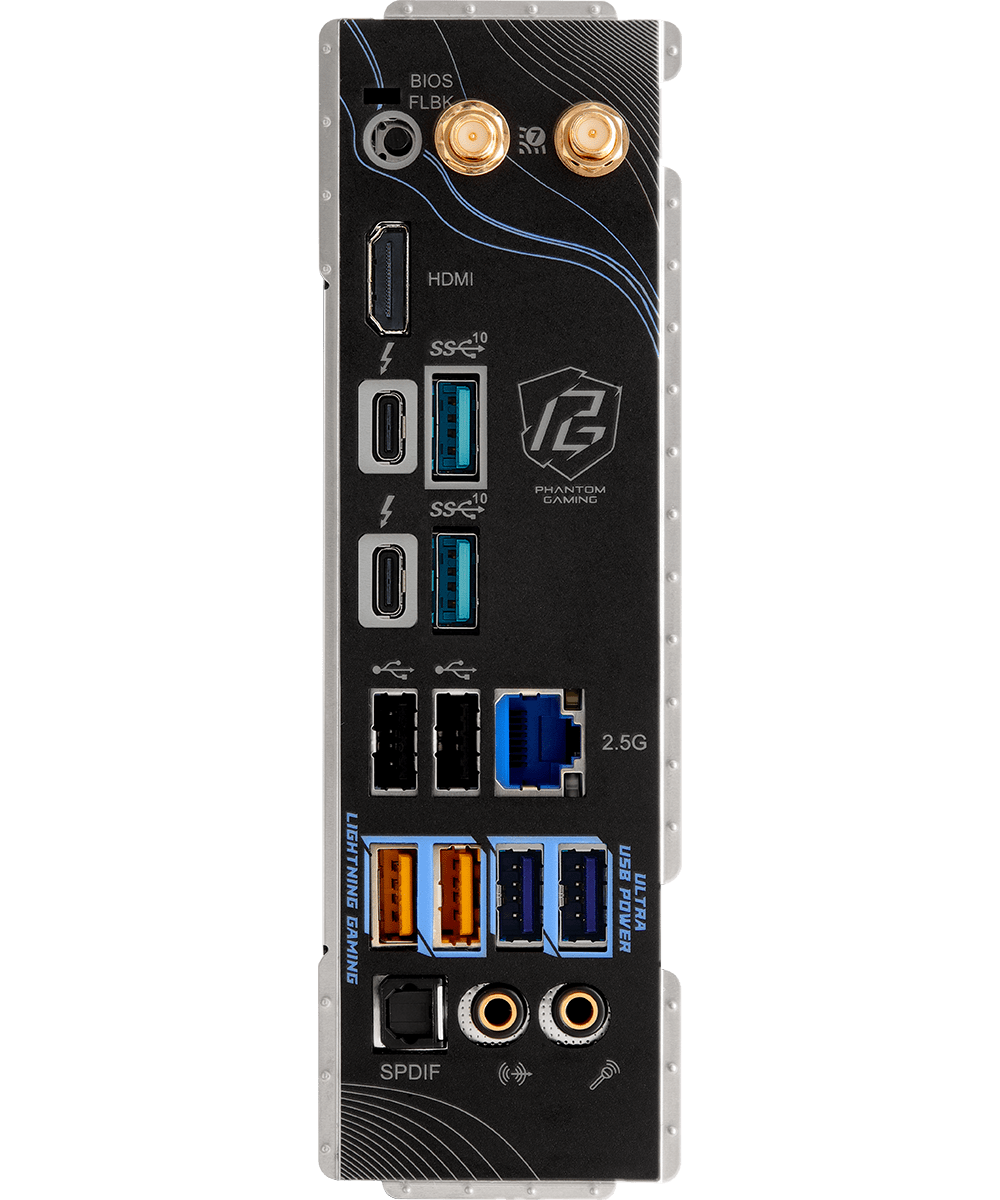

Rear I/O Ports

• USB 3.2 Gen 1 Type-A: 4
• USB 3.2 Gen 2 Type-A: 2
• USB 2.0: 2
• Thunderbolt: 2
• HDMI: 1
• Ethernet (RJ-45): 1
• Wi-Fi Antenna Jacks: 2
• S/PDIF Out, Mic-In: Yes

Internal I/O & Power

• SATA III Ports: 4
• M.2 Slots: Multiple
• RGB LED Pin Header: Yes
• CPU Fan Connectors: 2
• Chassis Fan Connectors: 4
• Water Pump Connector: 1
• 24-Pin ATX Power Connector: Yes
• 8-Pin EPS Power Connectors: 2

BIOS

• Type: UEFI AMI
• Size: 256 Mbit

Dimensions

• Width: 305mm
• Depth: 244mm
