Description

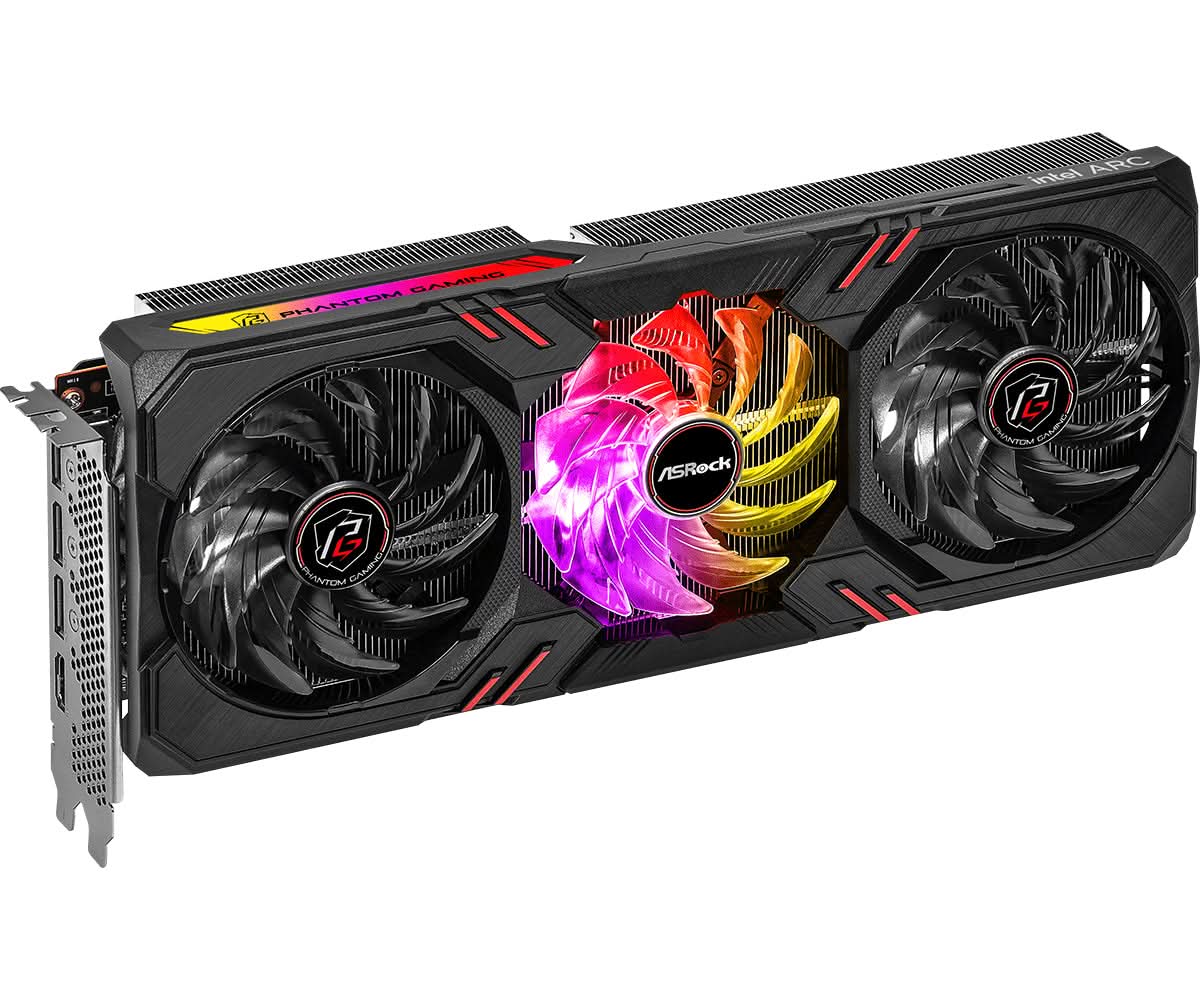

Unleash next-level gaming performance with the ASRock Intel Arc A770 Phantom Gaming 16GB OC Graphics Card. Featuring cutting-edge Intel Arc technology, lightning-fast GDDR6 memory, and sleek Phantom Gaming 3X Cooling, it’s built for stunning visuals, ultimate cooling, and immersive gameplay.

Key Features

• Graphics Processor: Intel Arc A770, 2200 MHz
• Memory: 16GB GDDR6, 256-bit, 17.5 Gbit/s data transfer
• Multi-Display Support: Up to 4 displays, max resolution 7680 x 4320
• Advanced Cooling: Phantom Gaming 3X Cooling with 3 fans and RGB illumination

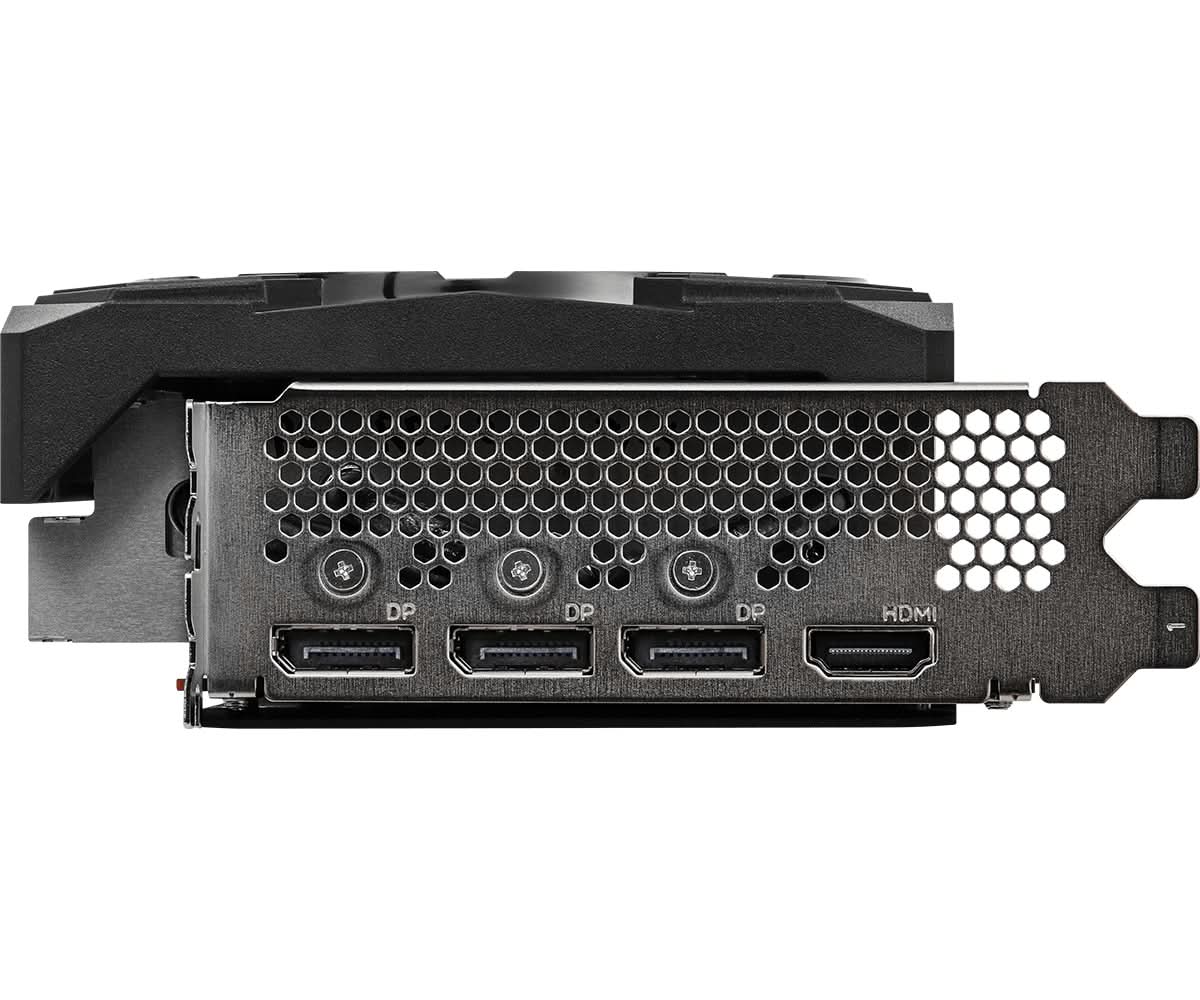

• Ports: 1x HDMI 2.1, 3x DisplayPort 2.0
• DirectX 12 Ultimate and OpenGL 4.6 support
• Power Requirements: 700W minimum PSU, 2x 8-pin power connectors
• Design: Full-Height/Full-Length, black, 2.8-slot form factor

Specifications

General

• Product Name: ASRock Intel Arc A770 Phantom Gaming 16GB OC Graphics Card
• Product Color: Black
• Cooling Technology: Phantom Gaming 3X Cooling (Active cooling, 3 fans)
• Illumination: Multi-color RGB

Graphics Processor

• GPU Family: Intel
• GPU Model: Arc A770
• Processor Frequency: 2200 MHz
• Xe-cores: 32
• Intel® XMX Engines: 512

Memory

• Type: GDDR6
• Capacity: 16 GB
• Bus Width: 256-bit
• Data Transfer Rate: 17.5 Gbit/s

Display Support

• Maximum Displays: 4
• Maximum Resolution: 7680 x 4320 pixels

Connectivity

• Interface Type: PCI Express x16 4.0
• Ports:
  • 1x HDMI 2.1
  • 3x DisplayPort 2.0

Performance

• DirectX Version: 12 Ultimate
• OpenGL Version: 4.6
• HDCP: Yes

Design & Dimensions

• Form Factor: Full-Height/Full-Length (FH/FL)
• Slots Required: 2.8
• Dimensions:
  • Length: 305 mm
  • Height: 131 mm
  • Depth: 56 mm
• Weight: 1.15 kg

Power Requirements

• Minimum PSU: 700 W
• Supplementary Power Connectors: 2x 8-pin

Software Compatibility

• Supported OS: Windows 10 x64, Windows 11 x64

Packaging

• Package Type: Box
• Content: Quick Installation Guide
