Description

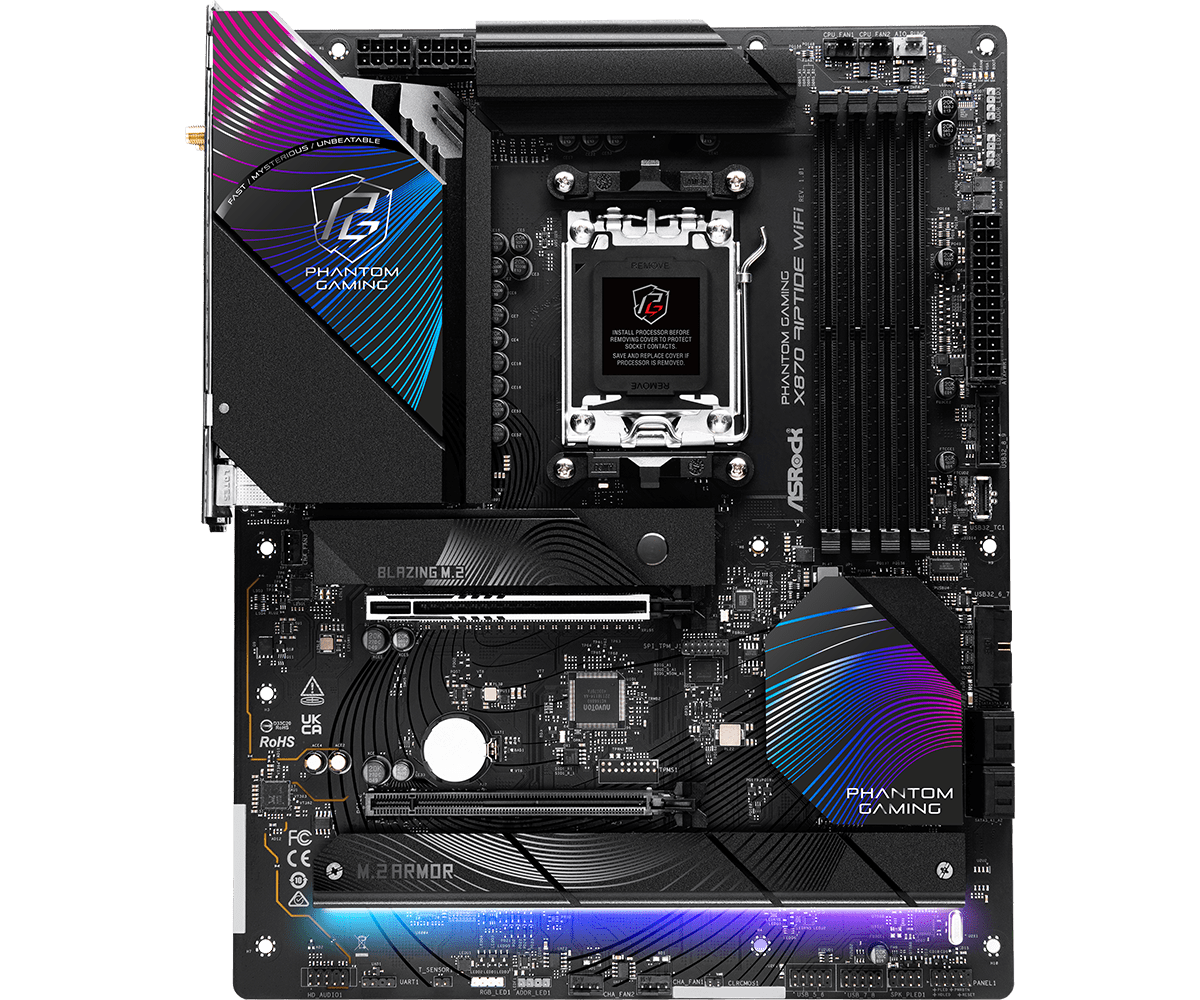

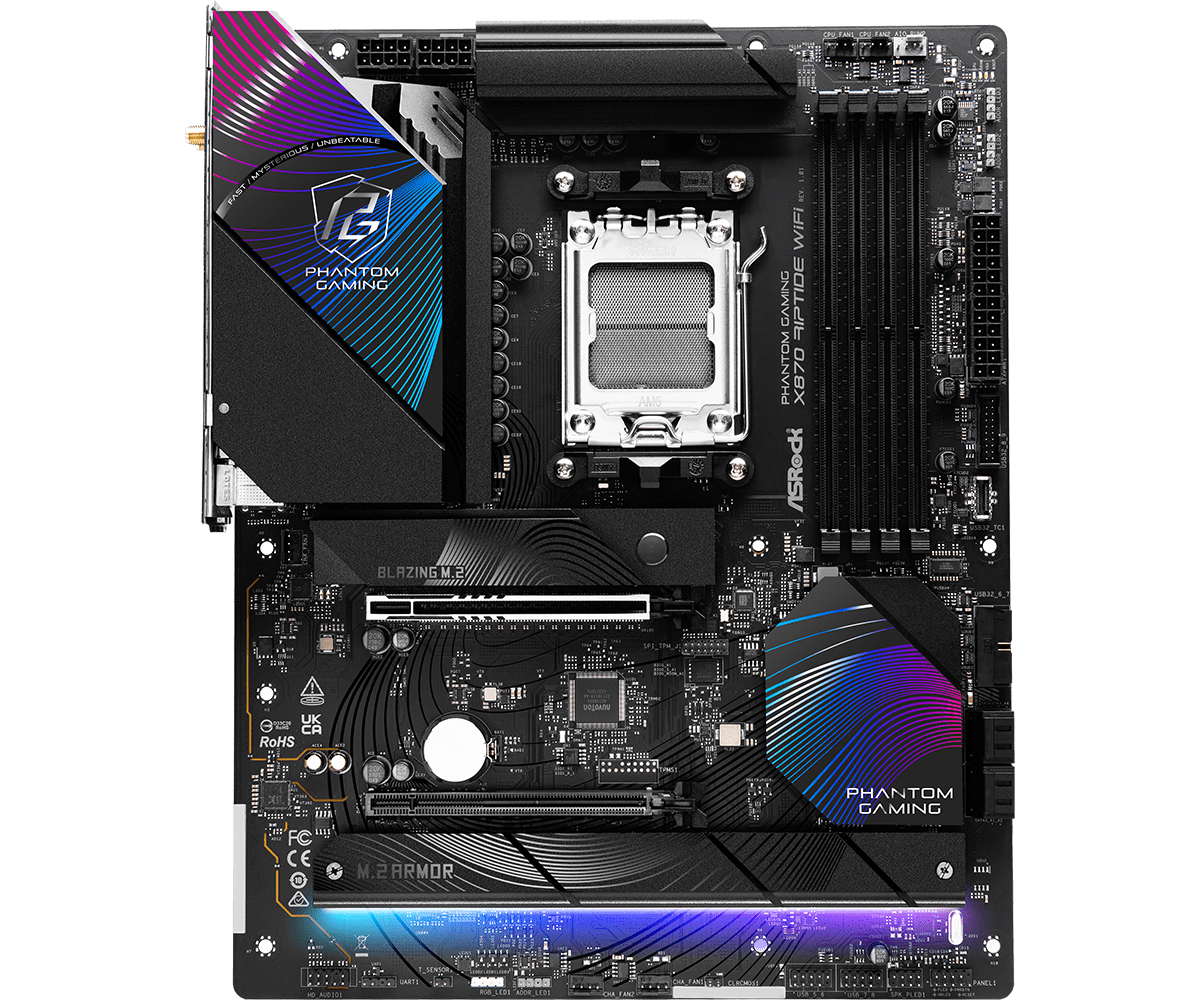

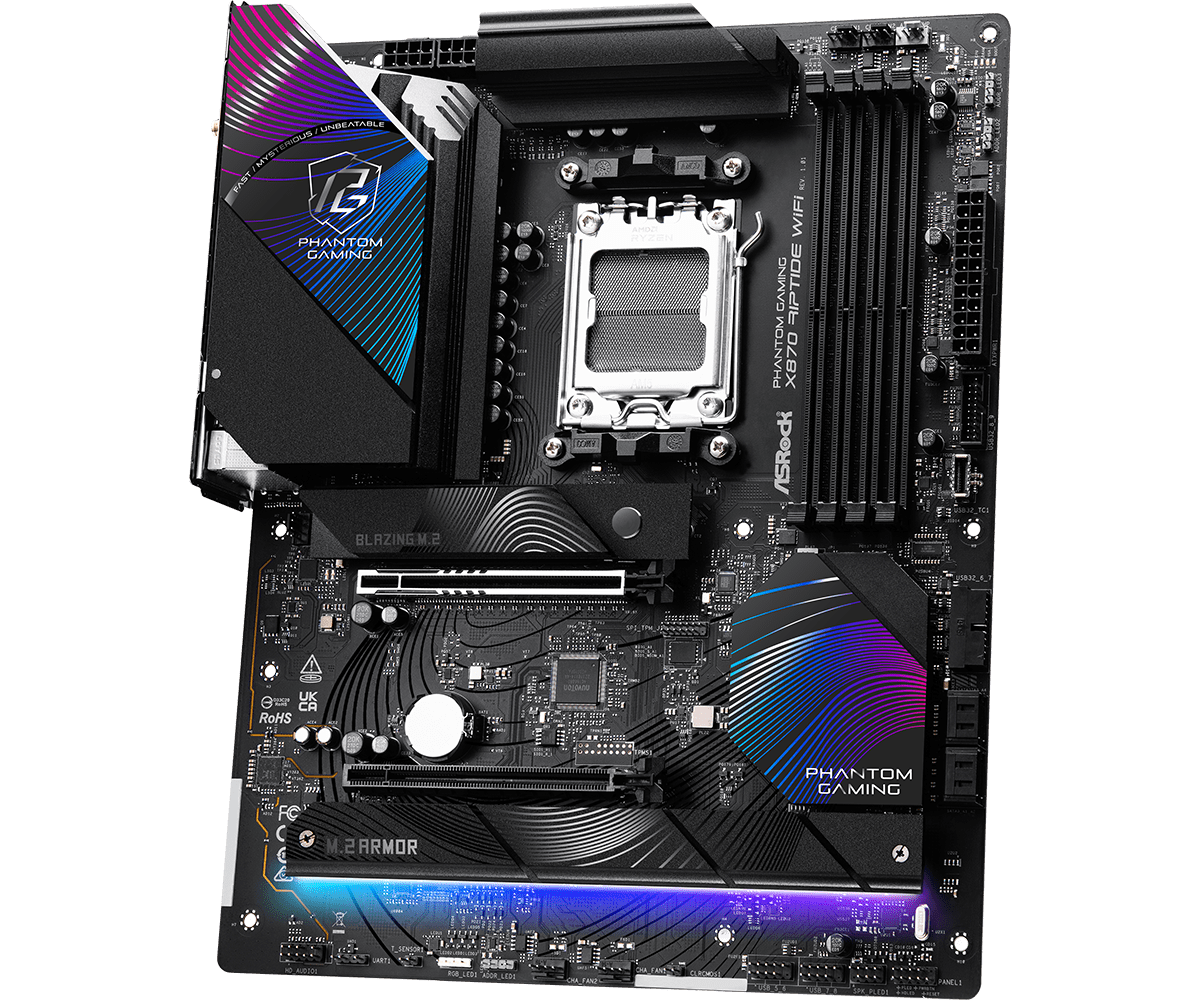

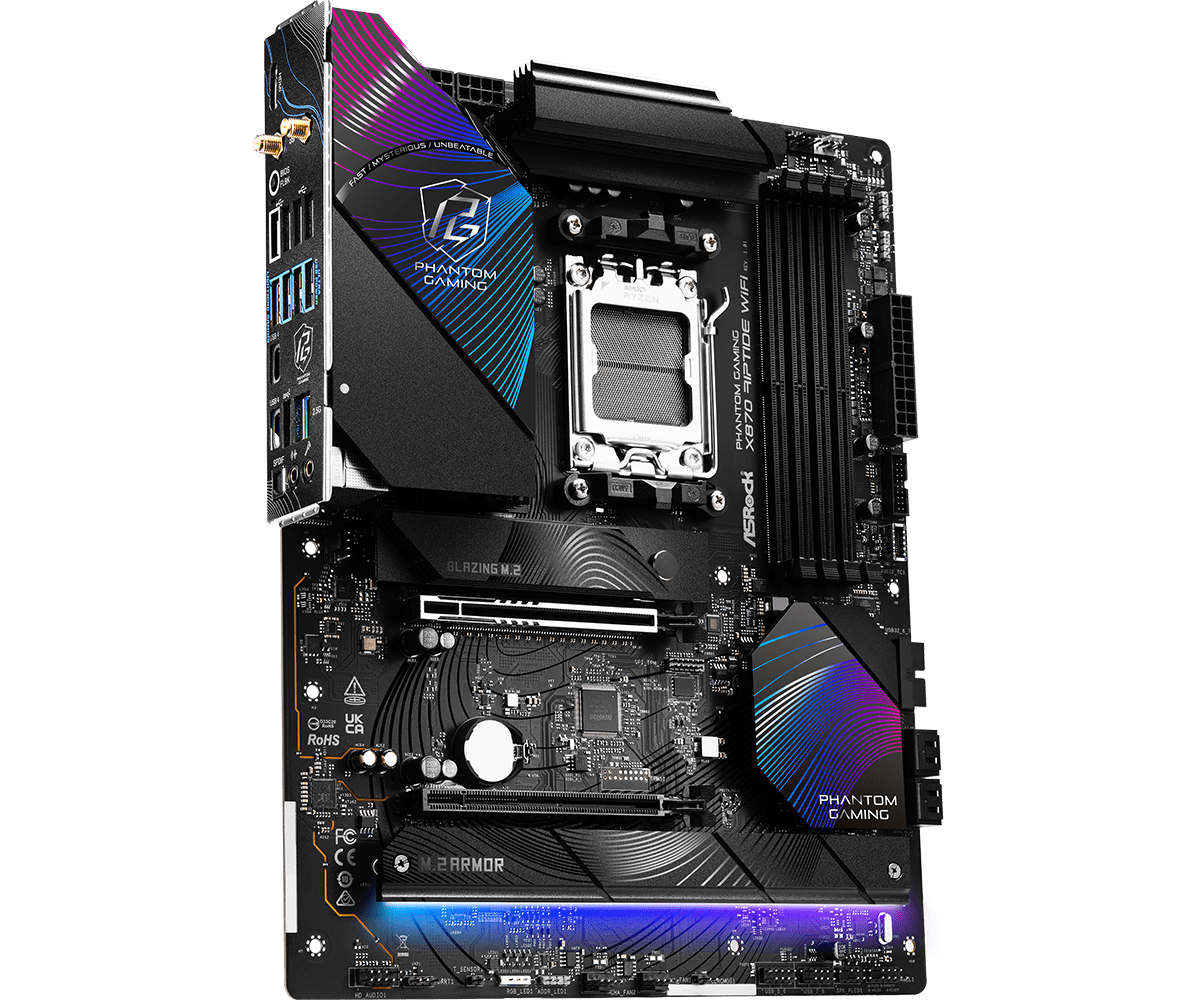

ASRock X870 Riptide WiFi Motherboard
The ASRock X870 Riptide WiFi motherboard is engineered for gamers and PC enthusiasts who demand superior performance and reliability. Built around the powerful AMD X870 chipset, this motherboard supports the latest AMD Ryzen 7000, 8000, and 9000 series processors, ensuring you get the most out of your system. With advanced cooling solutions, high-speed connectivity options, and customizable RGB lighting, the X870 Riptide WiFi is the perfect foundation for your next high-performance build.
Key Features:
- Supports AMD AM5 Socket Ryzen™ 7000, 8000, and 9000 Series Processors
- 14+2+1 Phase Power Design with 80A Dr.MOS for VCore+SOC
- Dual Channel DDR5 Memory, up to 8000+ (OC)
- PCIe 5.0 and PCIe 4.0 M.2 Slots
- Wi-Fi 7 and 2.5G Ethernet for high-speed networking
- USB4 and USB 3.2 Gen2x2 Type-C for fast data transfer
- Nahimic Audio for immersive sound quality
The ASRock X870 Riptide WiFi motherboard features a robust 14+2+1 phase power design with 80A Dr.MOS, providing stable power delivery for overclocking and high-performance tasks. The dual-channel DDR5 memory support allows for speeds up to 8000+ MHz (OC), ensuring your system runs smoothly even under heavy loads. With PCIe 5.0 and PCIe 4.0 M.2 slots, you can take advantage of the latest high-speed SSDs for faster data access and transfer.
Connectivity is a breeze with Wi-Fi 7 and 2.5G Ethernet, offering reliable and fast network connections. The motherboard also includes USB4 and USB 3.2 Gen2x2 Type-C ports, providing versatile and high-speed data transfer options. For audio enthusiasts, the Nahimic Audio technology delivers rich and immersive sound, enhancing your gaming and multimedia experience.
With its advanced features and high-quality components, the ASRock X870 Riptide WiFi motherboard is an excellent choice for gamers and PC builders looking to create a powerful and reliable system. Its support for the latest technologies and robust design make it a standout option in the market.
Specifications
Unique Feature | Superb Productivity - PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- USB4 Type-C Ports (40 Gb/s)
Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming
- Killer 2.5G LAN, 802.11be Wi-Fi 7 Module
- ASRock Lightning Gaming Ports
EZ Update - BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter - ASRock Post Status Checker
|
CPU | - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
|
Chipset | |
Memory | - Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
- Max. capacity of system memory: 256GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
|
BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support
|
Graphics | - Integrated AMD RDNA graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
|
Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
- Individual PCB Layers for R/L Audio Channel
- Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
- Nahimic Audio
|
LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Killer E3100G
- Supports Killer LAN Software
|
Wireless LAN | - 802.11be 2x2 Wi-Fi 7 Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
- Supports 2.4GHz/5GHz/6GHz frequency band
- Supports 160MHz channel bandwidth with 6GHz frequency band
- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.4
- Supports MU-MIMO
|
Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Supports AMD CrossFire
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
|
Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
ASMedia ASM1061: - 4 x SATA3 6.0 Gb/s Connectors
|
RAID | - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
|
USB | CPU: - 2 x USB4 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3))
- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1))
Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front)
- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4))
- 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
|
Connector | - 1 x Thermistor Cable Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header
- 3 x Addressable LED Headers
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
|

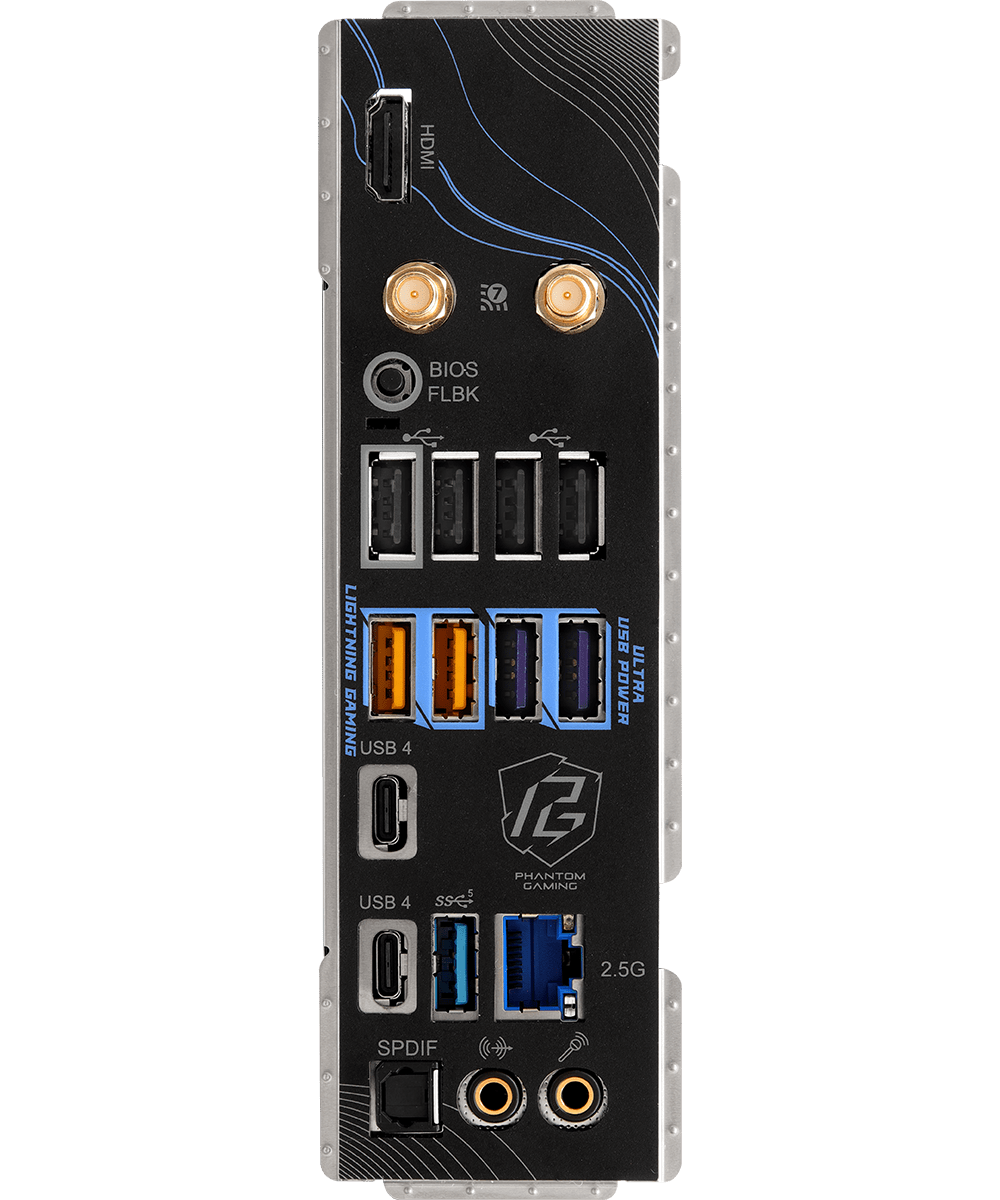

Rear Panel I/O | - 2 x Antenna Ports
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x USB4 Type-C Ports (40 Gb/s)
- 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.)
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.)
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
|
Software and UEFI | Software - ASRock Motherboard Utility (Phantom Gaming Tuning)
- Killer Control Center
- ASRock Polychrome SYNC
UEFI - ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
|
Accessories | - 2 x SATA Data Cables
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 1 x ARGB Splitter Cable
- 1 x Thermistor Cable
|
Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB
|
OS | - Microsoft Windows 10 64-bit / 11 64-bit
|
Certifications | - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
|
