| Memory | - Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 9066+(OC)*
- 1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively.
- 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
- 2DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
- 2DPC 2R Up to 5800+ MHz (OC), 4400 MHz Natively.
- Max. capacity of system memory: 256GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0x
* Please refer to Memory Support List on ASRock's website for more information. |
| Expansion Slot | - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
* Supports NVMe SSD as boot disks. |
| Graphics | - Intel® UHD Graphics Built-in Visuals
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- 2 x Intel® Thunderbolt TM 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*
* Only the CPU's embedded graphics can be displayed through Thunderbolt ports. |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
|
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Killer® E3100G
- Supports Killer LAN Software
|
| Wireless LAN | - 802.11axe Wi-Fi 6E Module
- Supports Dual-Band 2x2 160MHz with extended 6GHz band*
* Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. |
| USB | - 2 x Thunderbolt TM 4 Type-C (Rear)
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 2 x USB 3.2 Gen2 Type-A (Rear)
- 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection. |
| Storage | - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks. |
| Rear Panel I/O | - 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 2 x Thunderbolt TM 4 Type-C Ports
- 2 x USB 3.2 Gen2 Type-A Ports
- 4 x USB 3.2 Gen1 Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
|
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10. |
| Connector | - 1 x Thermistor Cable Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 2 x Addressable LED Headers**
- 2 x CPU Fan Connectors (4-pin)
- 3 x Chassis Fan Connectors (4-pin)
- 1 x AIO Pump Fan Connector (4-pin)
- 1 x Water Pump Fan Connector (4-pin)
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers
- 1 x USB 3.2 Gen1 Header
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header
* Supports up to 12V/3A, 36W LED Strip. ** Supports up to 5V/3A, 15W LED Strip. |
| BIOS Feature | - 256Mb AMI UEFI Legal BIOS with GUI support
|
| Software | - ASRock Motherboard Utility (Phantom Gaming Tuning)
- Killer Control Center
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop. |
| UEFI | - ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
|
| Certifications | - Microsoft® Windows® OS 11 64-bit
- FCC, CE
- ErP/EuP ready
|
| Accessories | - 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 1 x ARGB Splitter Cable
- 1 x Thermistor Cable
|

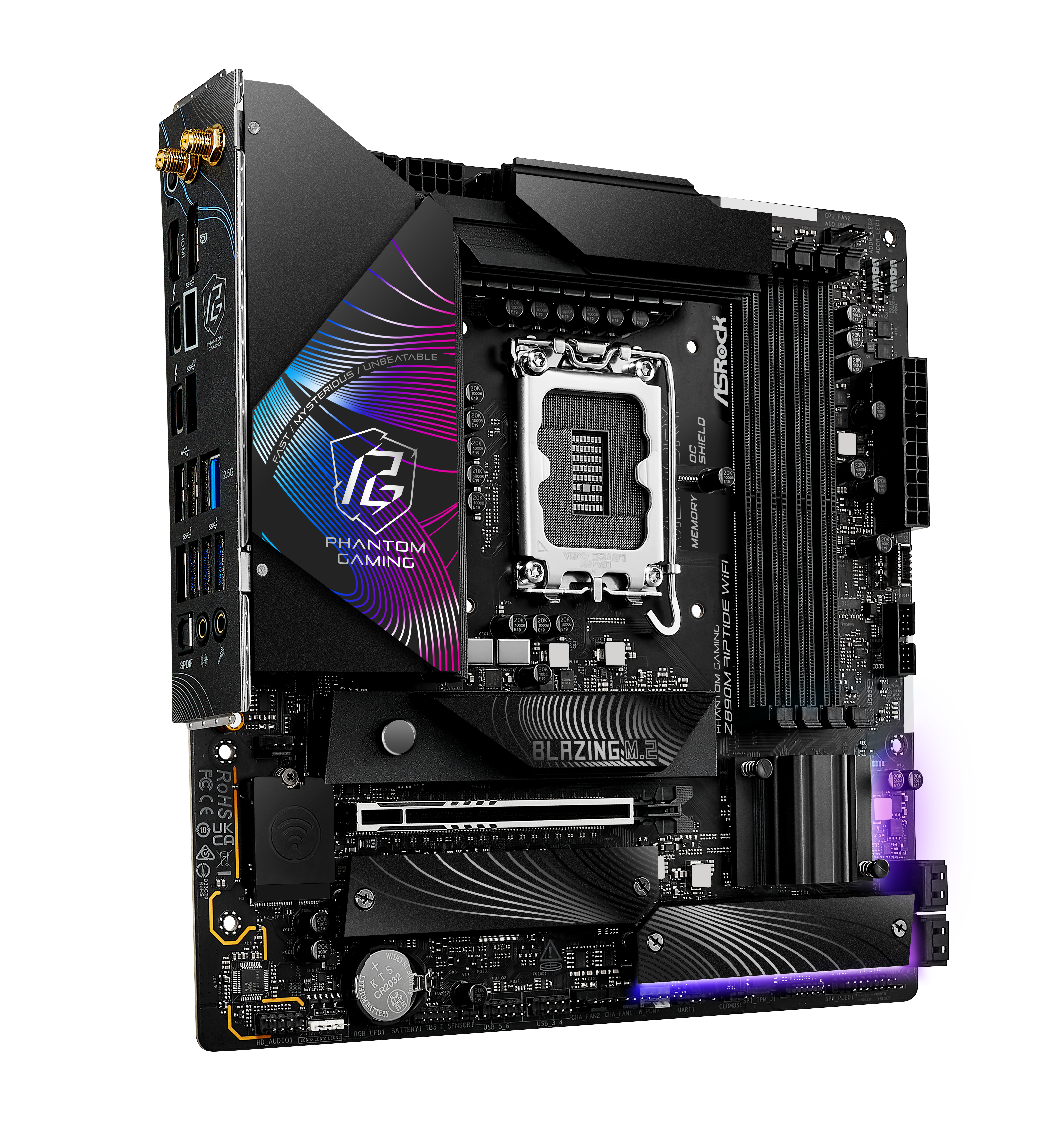

| Platform | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- 2oz Copper PCB
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT)
- Integrated NPU for dedicated AI acceleration
|
| Superb Productivity | - PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- Thunderbolt TM 4 Type-C Ports (40 Gb/s)
|
| Rock-Solid Durability | - Server-Grade Low-Loss PCB
- 16+1+1+1+1 Power Phase, 80A Dr.MOS for VCore+GT+SA with Enlarged Heatsink Armor
- Memory OC Shield
- Flexible Integrated I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
|
| Ultrafast Gaming | - Killer 2.5G LAN, 802.11axe Wi-Fi 6E Module
- Killer DoubleShot TM Pro
|
| EZ Update | - BIOS Flashback Button
- ASRock Auto Driver Installer
|
| EZ Troubleshooter | - ASRock Post Status Checker
|
